616DH Acf / Cof Bonding Machine Pulse Hot Press Equipment to Repair LCD TV Screen
2020 New Model Acf / Cof Bonding Machine Description
This product is used for various FPC, FOG, COF, TAB, COG and LCD/LED Panel and PCB conbination bonding, reflected in varioussize LCD screen vertical line, horizontal line, vertical band, black band, black line, color line, color band, multi-line, lurred screen, blackscreen, white screen, interference flashing, vertical semi-significant etc. malfunction maintenance.
2020 New Model Acf / Cof Bonding Machine Features
1. Imported titanium alloy bonding head
2. precise temperature control
3. multiple profiles for bonding [ 4 k, big cof, old cof etc. ]
4. Dual HD lens + Double large screen display
5. compact design & easy to shift on higher floor
6. special design of dashboard & finishing quality
7. complete lcd panel training including internal panel glass faults
8. back light table include

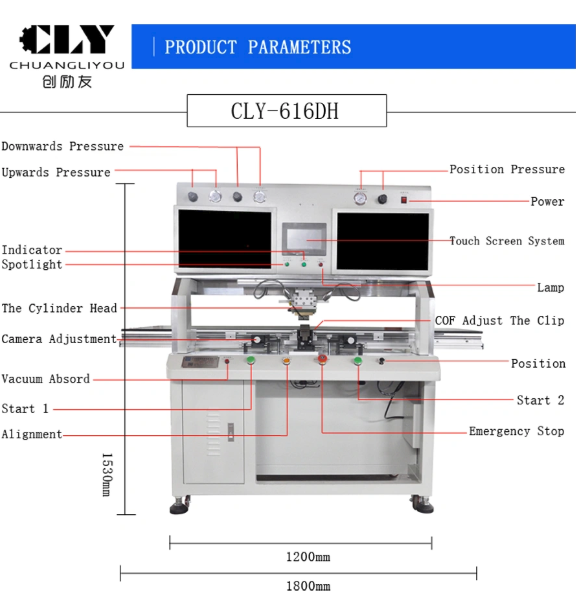

| Model number | 616DH |
| Heating Mode | Pulse |
| PID Temperature Control System Brand | Siemens temperature control module |
| Temperature curve:Factory Reset |
| Peak temperature + / - 0.3 degrees Celsius |
| From room temperature to 180 degrees response time for 2 seconds |
| Brand:the United State OMEAG |
| Heat Press Head | Materials: titanium alloy |
| Place of origin: the United States |
| Plane precision (hot-pressing side) : 0.005 mm |
| Industrial Control Unit | PLCS:DELTA |
| HDMI:Weinview |
| Imaging Unit | COF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package) |
| PCB counterpoint: no |
| Microscope magnification: 20 ~ 100 consecutive times |
| Number of lens: 2 |
| COF counterpoint display: 19 inch |
| PCB counterpoint display:no |
| Light above:yes |
| Light down:no |
| COF Trimming Unit | Place of origin: Taiwan |
| Type of guide rail:V guide rail |
| Accuracy: 0.01 |
| Adjustable direction: X/Y/R |
| X-y range: + / - 6.5mm |
| R range:coarse adjustment 360 degrees, fine adjustment + / - 5 degrees |
| COF Fixture | Mechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended |
| Lens Fine-Tuning Unit | Type of guide rail: precise cross rail . |
| Control mode: X - Y - Z micrometer control |
| Position Detection | NO |
| Silicone Skin/Teflon | Change position manually |
| LCD Drive (Platform) | Sliding or fixed optional manually |
| Alarm | Abnormal:temperature/thermocouple anomaly/actions |
| Heat Seal Head Counterpoint | Independent pneumatic,Pressure reducing valve be adjusted manually |
| Control Way | Touch screen + button operation |
| Parameter Setting | According to the need to set to storage more groups of hot-pressing parameters |
| Voltage | AC220 v |
| Peak Power | 1500W |
| Weight | 450kg |
| Size Of Machine (mm) | 1800(L)X1200(W)X1520(H)mm |
About us
Guangzhou Chuangliyou Machinery Equipment Co., Ltd.
Guangzhou Chuang Li You Machinery Equipment Technology Co., Ltd has devoted for many years to professional design, production, sales and technical teaching in the field of machine for LCD screen repair.
As an automation equipment hightech enterprise, the company holds the development concept "quality first, independent innovation, excellent practical" since its establishment. We explore the precise, practical, convenient and quick production process, and put forward concrete solving plans about professional production equipment and the overall equipment in LCD field for customers.
Our products include a series of FOG/COF/TAB heat press machines, bonding machines, which are applied to manufacturers of LCD panel and home appliance maintenance industry. Moreover, we maintain online support forum to assist any help to customer and provide customers with accessories, consumables and one-stop service.
What's the payment and delivery time?
1. Payment: Terms EXW/FOB/CIF, by T/T, 100% deposit in advance (Recommend), Or 50% deposit and 50% paid before delivery
2. Delivery time: About one week.
3. How about the warranty?
Usually we provide 1 year standard warranty and whole life technical support.
4. How about the training?
We provide two training method: factory training and video training.
5. How you packing the machine when shipping?
LCD TV Repair Bonding Machine Package
